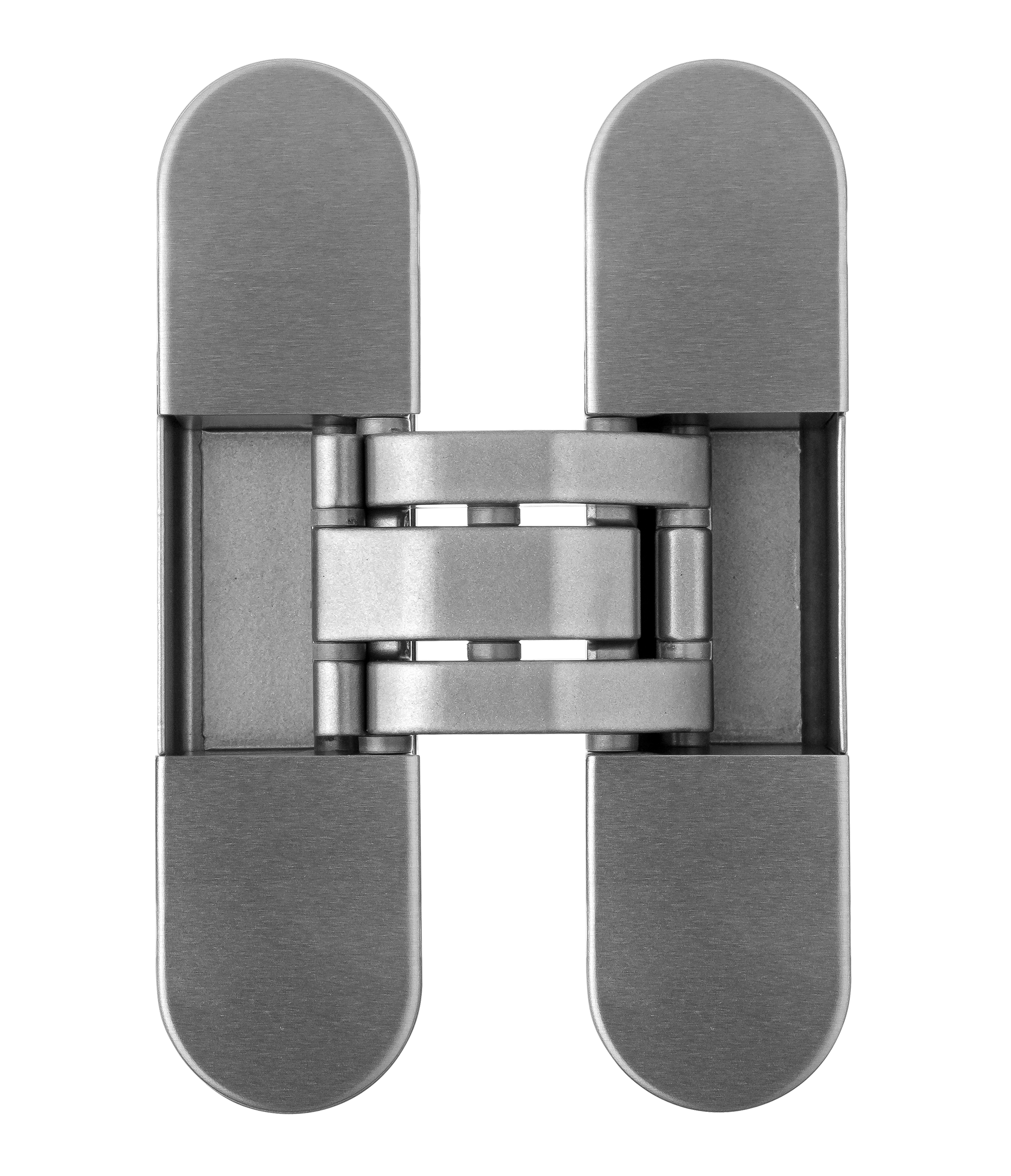

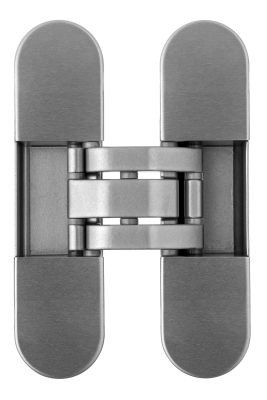

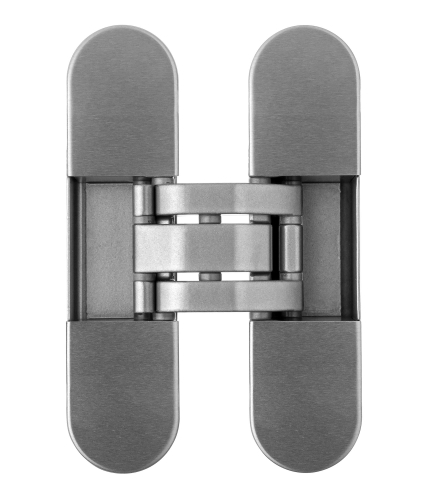

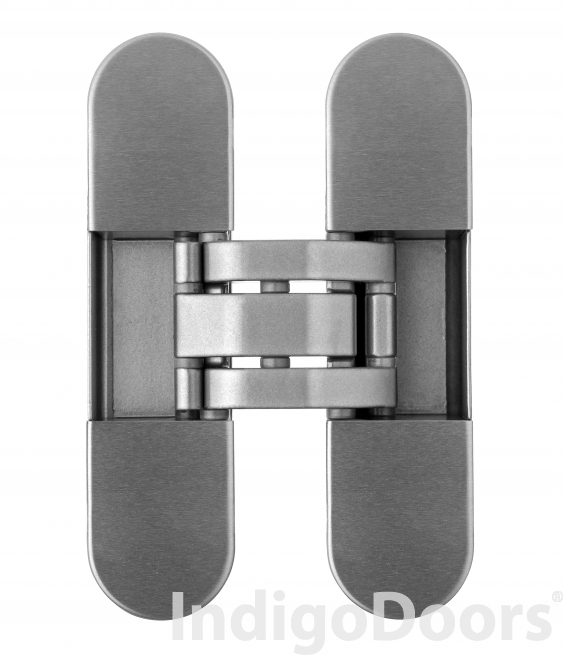

• Material of hinge: ZAMAK.
• The hinge is reversible, if mounted in the center of
the door thickness, allow the reversibility of the door,
thus enabling the optimization of the stock and
logistics at installation.
• Movement on 7 junction fulcrums equipped with
bearing in plastic HT with high resistance and long life.
• Equipped with 3-way adjustments that can be
settled by means of just one 3 mm hex-spanner. Once
installed, the door has natural sinking, Invisacta hinge
allows to set the door back to the start position.
• The hinge can be fitted with door closing devices.
• Outer casings protect the inner junction fulcrums
against rubble coming from door installation works.
• The clamping screws, placed in the outer casings, are
not used for hinge adjustment, therefore they remain
stable for a long time.
• Aluminum caps available to conceal the screws
